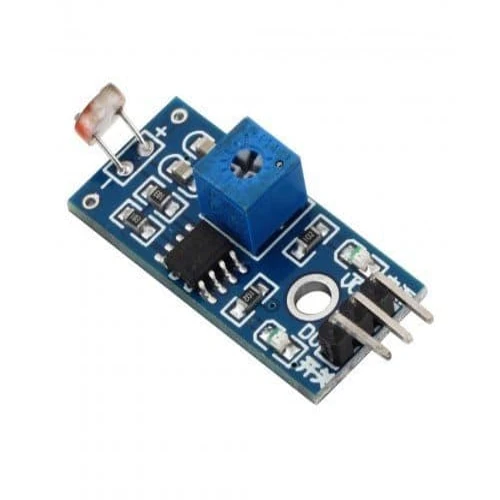

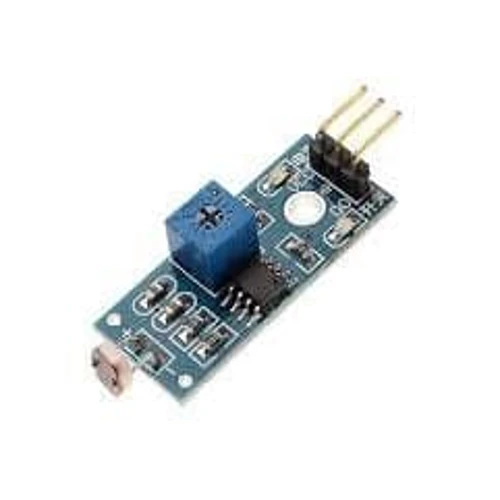

LDR Light Sensor Module

LDR Light Sensor Module: High-Precision Ambient Illumination Detection

Bring smart environmental awareness to your hardware applications with the high-performance LDR Light Sensor Module. Engineered specifically for developers, engineering students, and IoT enthusiasts, this highly versatile communication board acts as an interactive bridge between varying ambient light conditions and digital microcontrollers. Whether you are constructing an automated home automation gateway, an intelligent solar tracking grid, or an energy-efficient street lighting array, this dependable sensor provides real-time light monitoring with zero latency.

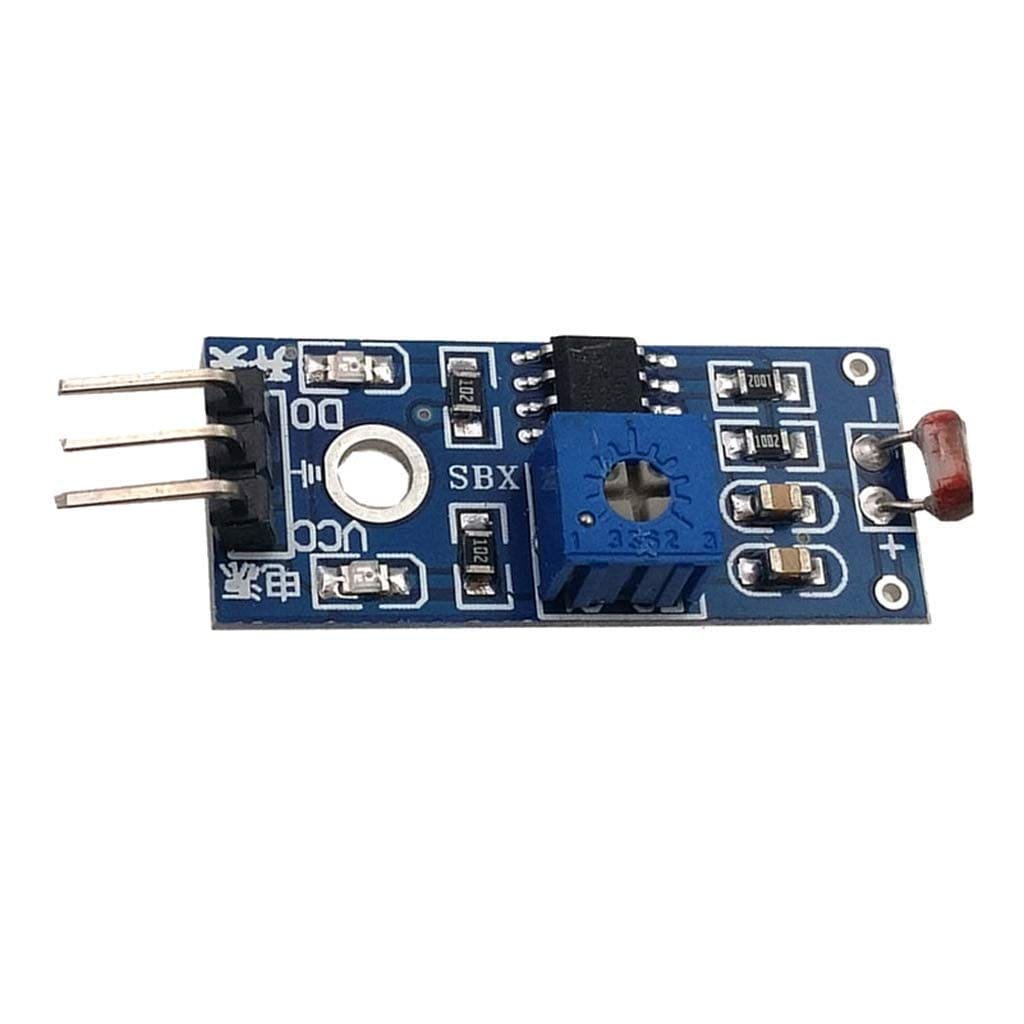

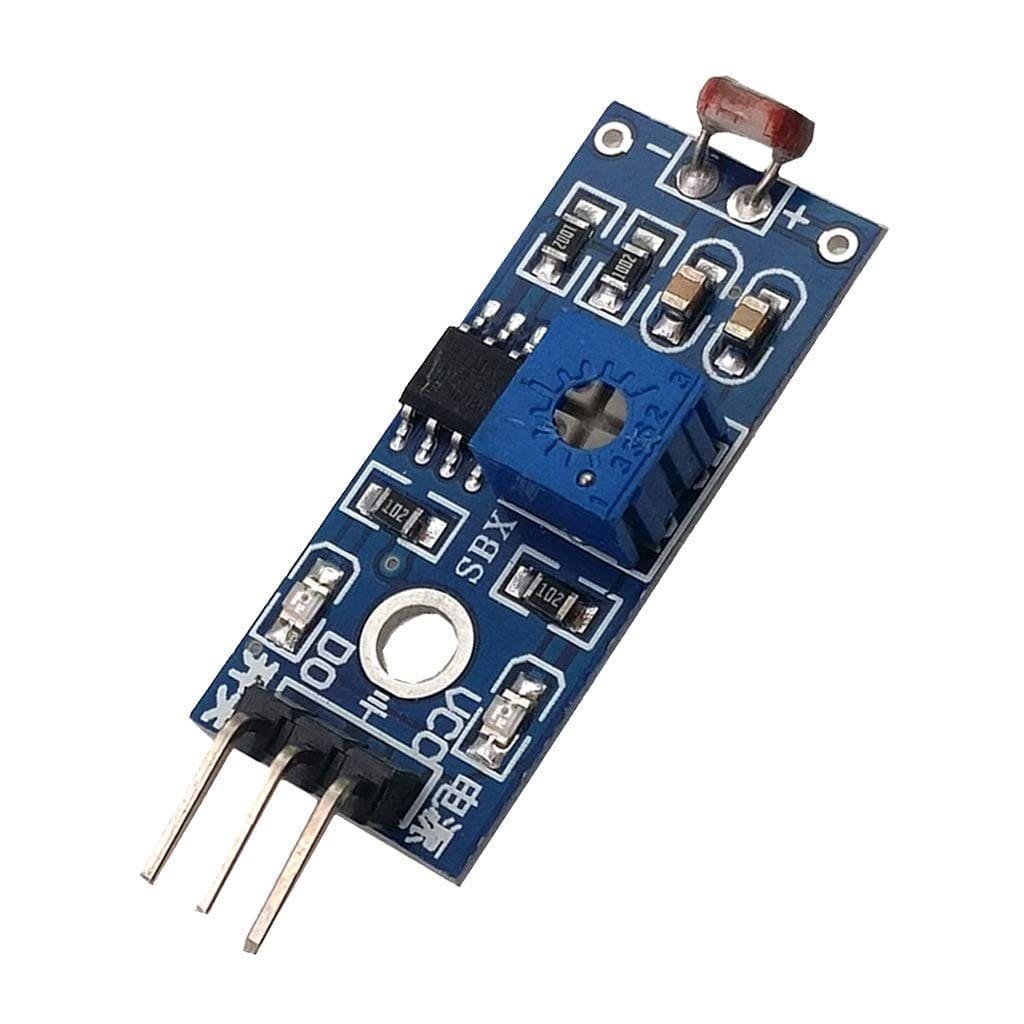

At the absolute center of this module is a highly sensitive Photoresistor (Light Dependent Resistor) paired with an onboard LM393 voltage comparator integrated circuit. Standard microcontrollers often struggle with fluctuating raw analog signals in noisy environments. The LDR Light Sensor Module resolves this complexity by offering both immediate digital switching thresholds and granular analog telemetry streams, allowing your central system to execute critical automation tasks without software lag or complex algorithmic filtering.

Key Features of the LM393 Photoresistor Board

When deploying electronic tracking hardware into modern smart projects, precision, signal stability, and ease of deployment are critical. The LDR Light Sensor Module stands out due to its feature-rich, ultra-compact architecture:

• Adjustable Sensitivity Threshold: Features an onboard multi-turn potentiometer, allowing you to instantly fine-tune the exact ambient light level that triggers the digital output.

• Dual Output Modes: Provides both a clean, debounced Digital Output (DO) for direct switching and a continuous Analog Output (AO) for precise illumination mapping.

• Dual Onboard LED Indicators: Equipped with a dedicated Power LED to confirm circuit status and an Output Status LED that illuminates the moment your target light threshold is reached.

• High Load Capacity Comparator: Driven by the robust LM393 chipset, producing a clean, reliable output signal with a driving capability exceeding 15mA.

• Ultra-Compact Form Factor: Measuring a mere 3.2cm x 1.4cm, this tiny footprint easily slides into space-constrained enclosures, weatherproof housing, or crowded prototyping layouts.

Pin Configuration and Hardware Interfacing

Connecting the LDR Light Sensor Module to your development rig or production array is exceptionally straightforward. The low-profile green PCB features four clearly labeled heavy-duty header pins designed for seamless breadboard prototyping or permanent wire-harness solder joints:

1. VCC (Power Input): Connects to your system power. Fully compatible with standard 3.3V to 5V DC systems, making it natively operational across major microcontroller logic levels.

2. GND (System Ground): The primary ground return line for your power infrastructure.

3. DO (Digital Output): Generates a clean Active-Low signal (0V) when the ambient light crosses your preset threshold, making it perfect for direct logic triggers or driving low-power relay modules.

4. AO (Analog Output): Outputs a continuous voltage proportional to the light intensity falling on the photoresistor, which can be fed directly into an Analog-to-Digital Converter (ADC).

Universal Microcontroller Compatibility

No matter what ecosystem your smart project runs on, this module serves as a universal translator for light variations. It integrates effortlessly with today’s leading prototyping and automation platforms:

Ideal for Arduino Automation Scales

Transform a basic Arduino Uno, Nano, or Mega into an intelligent, light-responsive device. Utilizing basic digital read operations, you can program sunrise alarms, automatic dark-activated switches, or laser-tripwire security systems with very minimal lines of configuration code.

High-Speed Telemetry with ESP32 & NodeMCU

When building Internet of Things (IoT) hardware, combining this module with an ESP32 or ESP8266 gives your setup instant wireless reporting. Stream real-time ambient lighting percentages, solar panel performance metrics, or room occupancy data straight to local dashboards, secure cloud databases, or smart home platforms.

Raspberry Pi Pico & Industrial PLC Implementations

For advanced developers utilizing dual-core ARM microcontrollers or complex robotics matrices, the low power consumption (15mA operating current) makes this module a vital physical layer component to gauge external light states safely without draining system resources.

Versatile Applications across Smart Environments

The rugged flexibility of the LDR Light Sensor Module makes it a staple tool across a broad spectrum of commercial, educational, and industrial projects:

• Smart Street Lighting Systems: Build energy-saving outdoor lighting grids that switch off immediately at dawn and illuminate automatically at dusk.

• Solar Panel Tracking Matrix: Design dynamic solar arrays that follow the brightest source of light throughout the day to maximize overall photovoltaic charging efficiency.

• Intelligent Home Automation: Create ambient light overrides for indoor smart blinds, automatic display backlights, and automated nighttime safety corridors.

• Industrial Security & Counter Arrays: Construct reliable object-counting conveyor belts or intrusion alarms by pairing the module with a focused laser diode or infrared beam.

Technical Specifications

• Core Sensor Type: Cadmium Sulfide (CdS) Photoresistor / Photocell

• Onboard Comparator Chipset: High-Stability LM393 Dual Differential Comparator

• Operating Voltage Range: 3.3V to 5V DC

• Active Operating Current: Low-power 15mA consumption profile

• Output Signal Format: Digital Switching (0 and 1) and Analog Voltage Curve

• Physical PCB Dimensions: Ultra-lightweight 3.2cm x 1.4cm geometry with pre-drilled bolt holes for easy structural mounting.
